Cutting machines

Metzner CCM2

Ideal for cutting steel reinforced materials of varying softness.

Circular Saw Cutting for Reinforced Materials

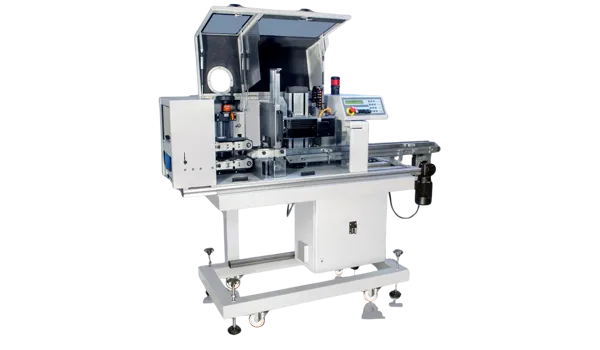

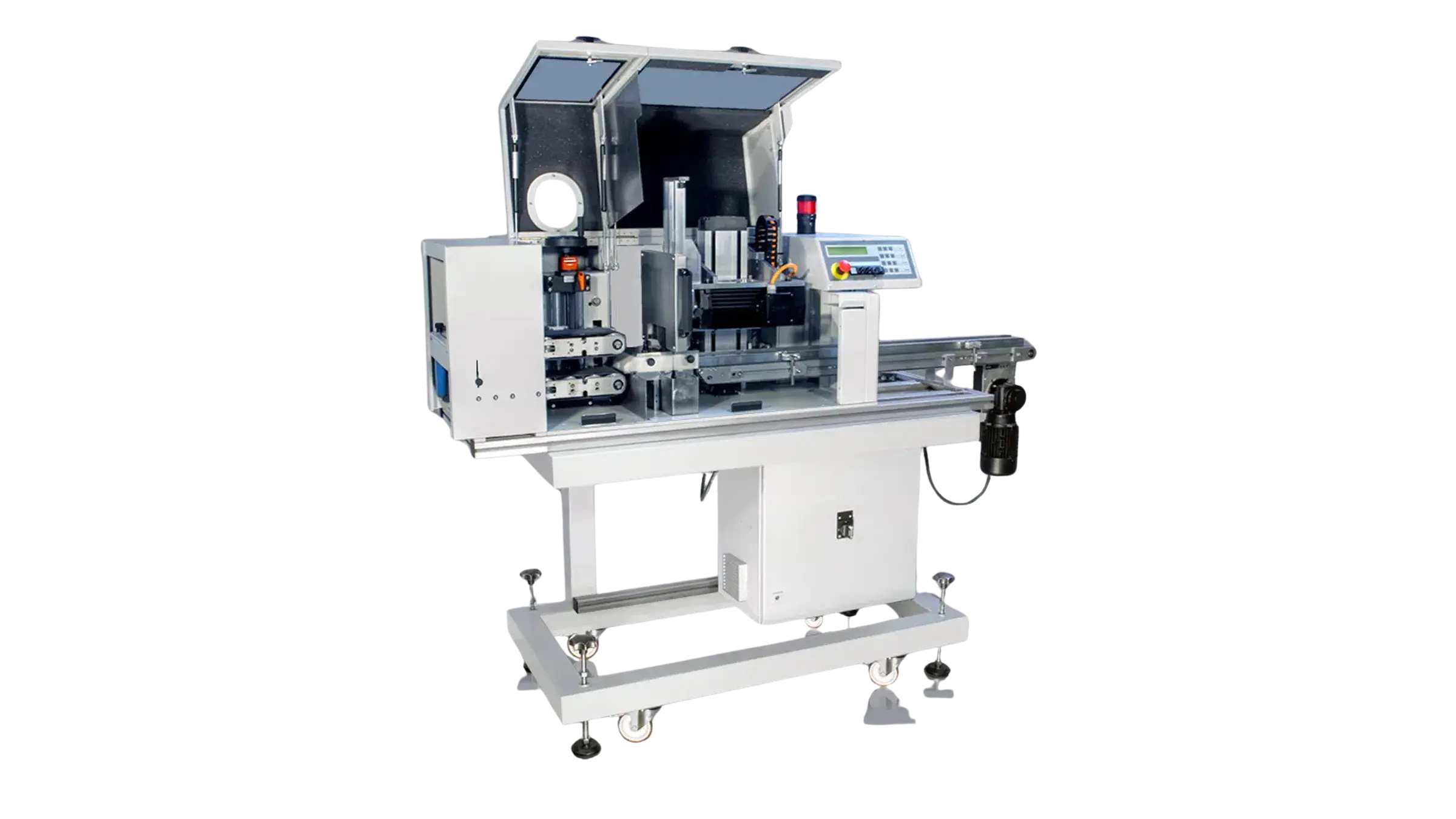

The Metzner CCM2 is a dry-cut circular-knife system purpose-built for processing steel-reinforced profiles and hoses, combining high stability with dust-extracted operation for clean, controlled cutting. It delivers consistent, high-quality results for both flexible and rigid reinforced materials.

Handles reinforced materials
Designed specifically to cut steel reinforced profiles, hoses and other challenging materials
Minimise rework & waste
Excellent cut quality achieved using optimised material guides, blade rotation speed and direction
Quality & economical
Feature rich cutting machine giving high quality production in an economical system

The efficient solution for reinforced materials

The Metzner CCM2 is a circular-knife cutting system for steel-reinforced profiles, hoses and other demanding continuous materials where cut quality and process stability are critical. It is typically specified for applications that require accurate dry cutting, controlled blade behaviour and reliable handling across both flexible and rigid reinforced products.

The machine is suited to manufacturers who need consistent production quality without moving to a larger multi-stage platform. Compared with the CCM4 and CCM6, the CCM2 is the more economical choice where the priority is dependable reinforced-material cutting rather than gap detection, wet cutting or in-line travelling-head operation.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

CCM2 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	CCM2
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	2060 x 750 x 1680mm	Length x Width x Height
Electrical Input	3~400 Vac; 50/60 Hz; 10A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	100mm	Maximum width of material that can be processed
Material Height Max	30mm	Maximum height of material that can be processed
Material Diameter Max	30mm	Maximum diameter of material that can be processed
Feeding Speed Max	120m/min	Maximum feeding speed
Cutting Performance	120cuts/min	Maximum cutting performance
