Cutting machines

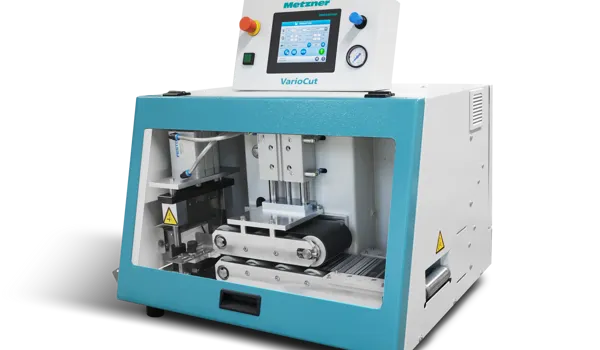

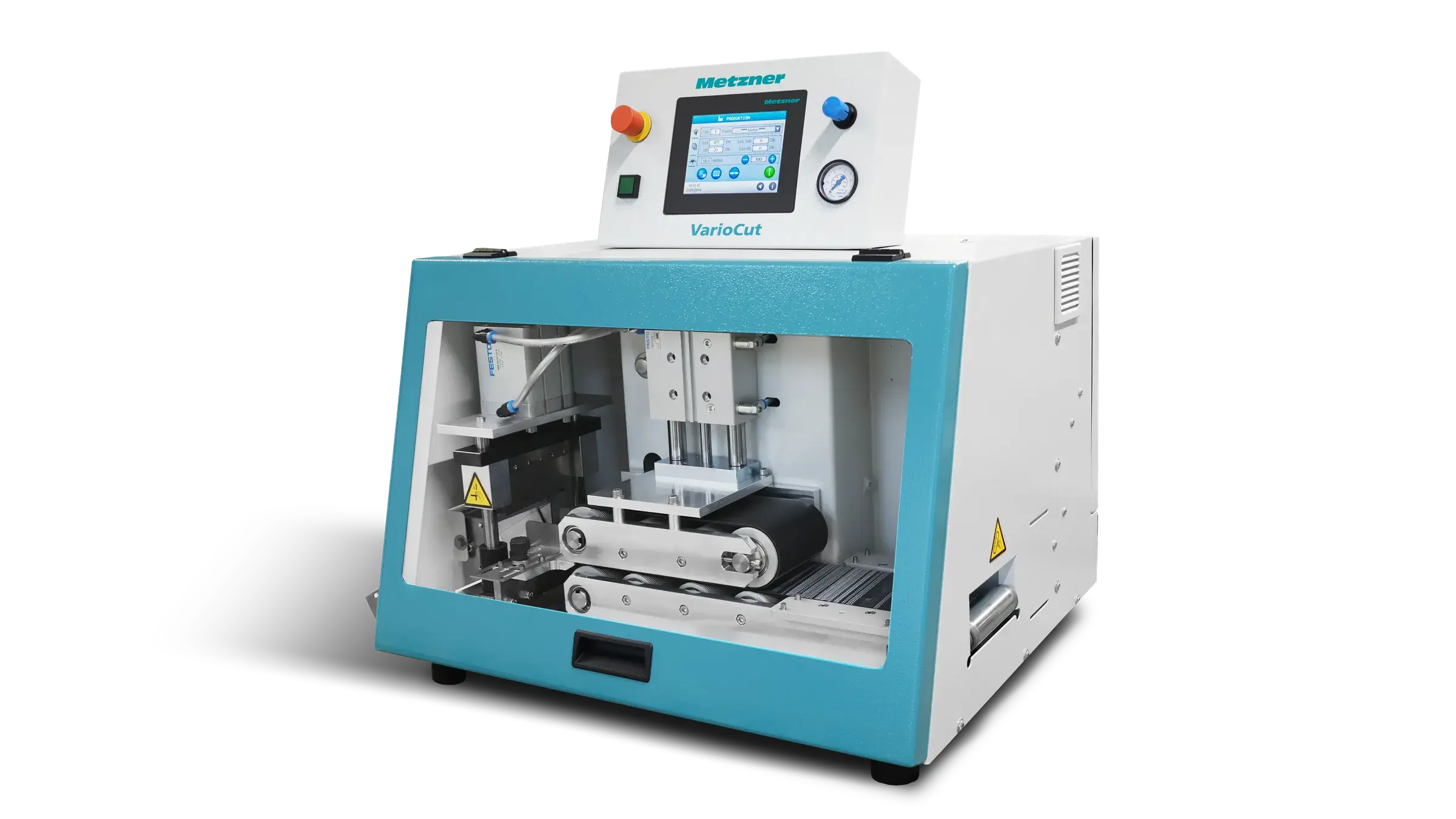

Metzner Variocut

Highly versatile for cutting a variety of different materials.

Engineered for Precision and Versatility

The Metzner Variocut is a high-performance universal cutting machine built to handle a wide range of materials including rubber, plastic tubing, and flexible profiles. It ensures consistent, high-quality results making it ideal for modern production environments.

Maximise productivity
Cutting rate of up to 140 cuts per minute, with a feed speed of 90 metres per minute
Minimise waste & rework
Repeat accuracy within ±1 mm + 0.2% of the cut length
Versatile functionality
Multiple and swappable cutting heads such as die cut, shear cut and drawing cut for multiple material and cutting tasks
Precision handling
Belt feed with adjustable pressure ensures appropriate handling of your materials
Operator friendly
Intuitive touch screen controls and PLC integration simplify complex tasks and training even for less experienced operators
Ensured safety
Designed and built to meet applicable European and UK safety standards

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

Variocut datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	Variocut
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	765 x 515 x 460mm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	95mm	Maximum width of material that can be processed
Material Height Max	30mm	Maximum height of material that can be processed
Material Diameter Max	30mm	Maximum diameter of material that can be processed
Feeding Speed Max	90m/min	Maximum feeding speed
Cutting Performance	140cuts/min	Maximum cutting performance
