Cutting machines

Metzner DYNAMAT-80

Very high cutting speed for fast, continuous production.

Exceptional Cutting Speeds and Material Versatility

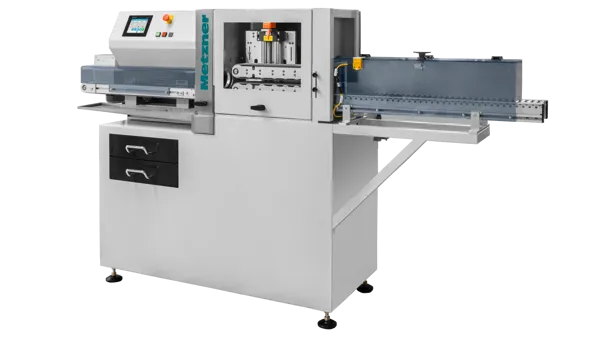

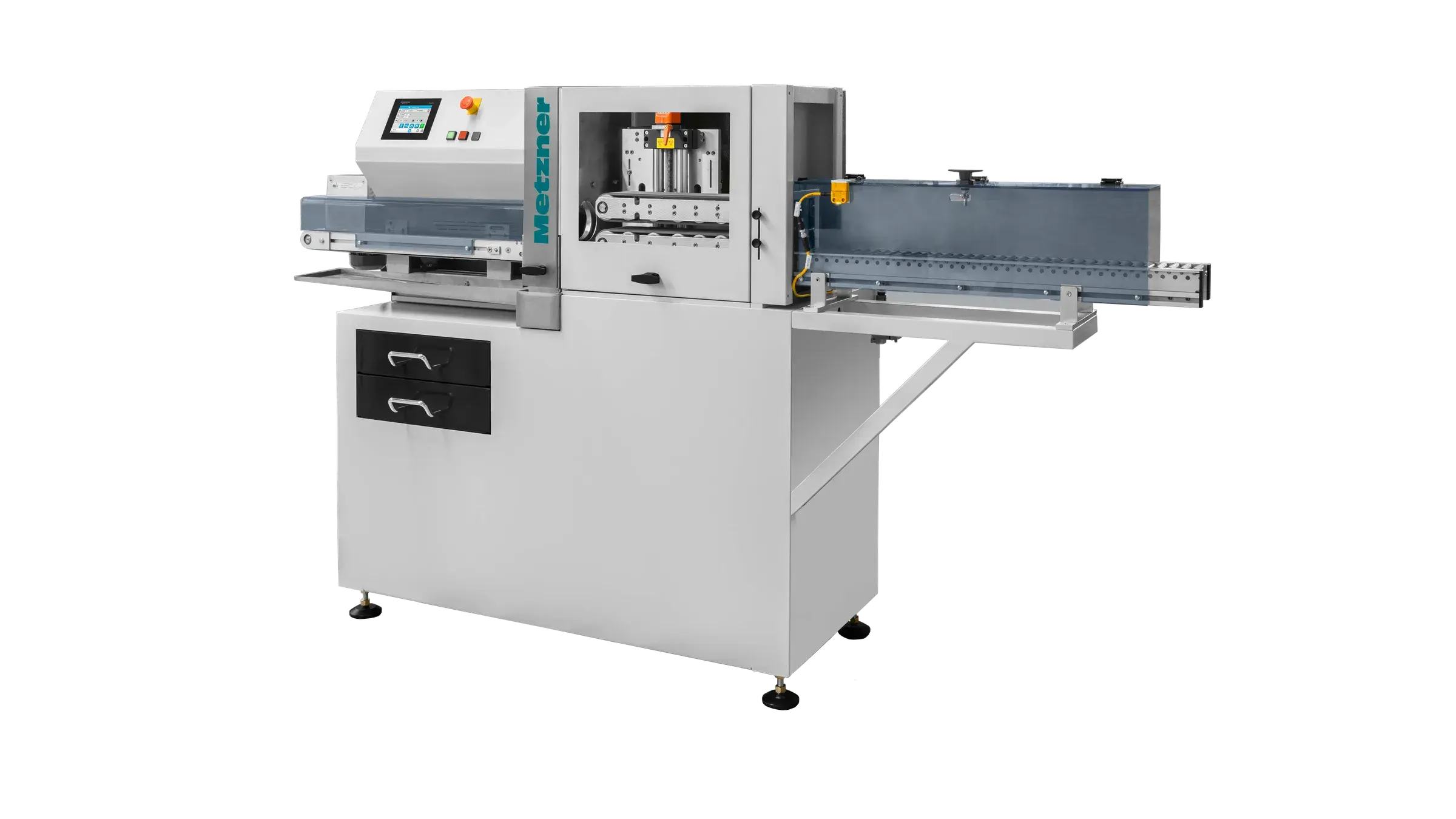

The Metzner DYNAMAT‑80 is a high‑speed cutting system engineered for continuous, high‑volume production across a wide range of materials, including those that generate dust. Delivering up to 4,000 cuts per minute with repeat accuracy of ±1 mm + 0.2% of length, it ensures precise, reliable results even in demanding industrial environments.

High volume production
Up to 4,000 cuts per minute at 60 metres per minute
Handles dusty materials
Dust extraction and humidification reduces associated risks when handling dust producing material
Accurate and precise
Repeat accuracy of ±1 mm + 0.2% of length, and parts as small as 0.1mm in length

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

DYNAMAT-80 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	DYNAMAT-80
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	2500 x 600 x 1400mm	Length x Width x Height
Electrical Input	3~400 Vac; 50/60 Hz; 10A	Power supply requirements
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	80mm	Maximum width of material that can be processed
Material Height Max	80mm	Maximum height of material that can be processed
Material Diameter Max	80mm	Maximum diameter of material that can be processed
Feeding Speed Max	60m/min	Maximum feeding speed
Cutting Performance	4000cuts/min	Maximum cutting performance
