Cutting machines

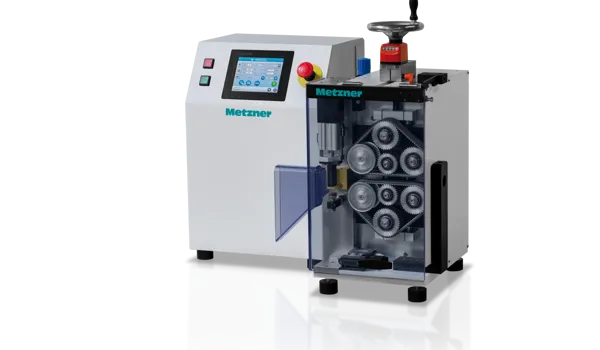

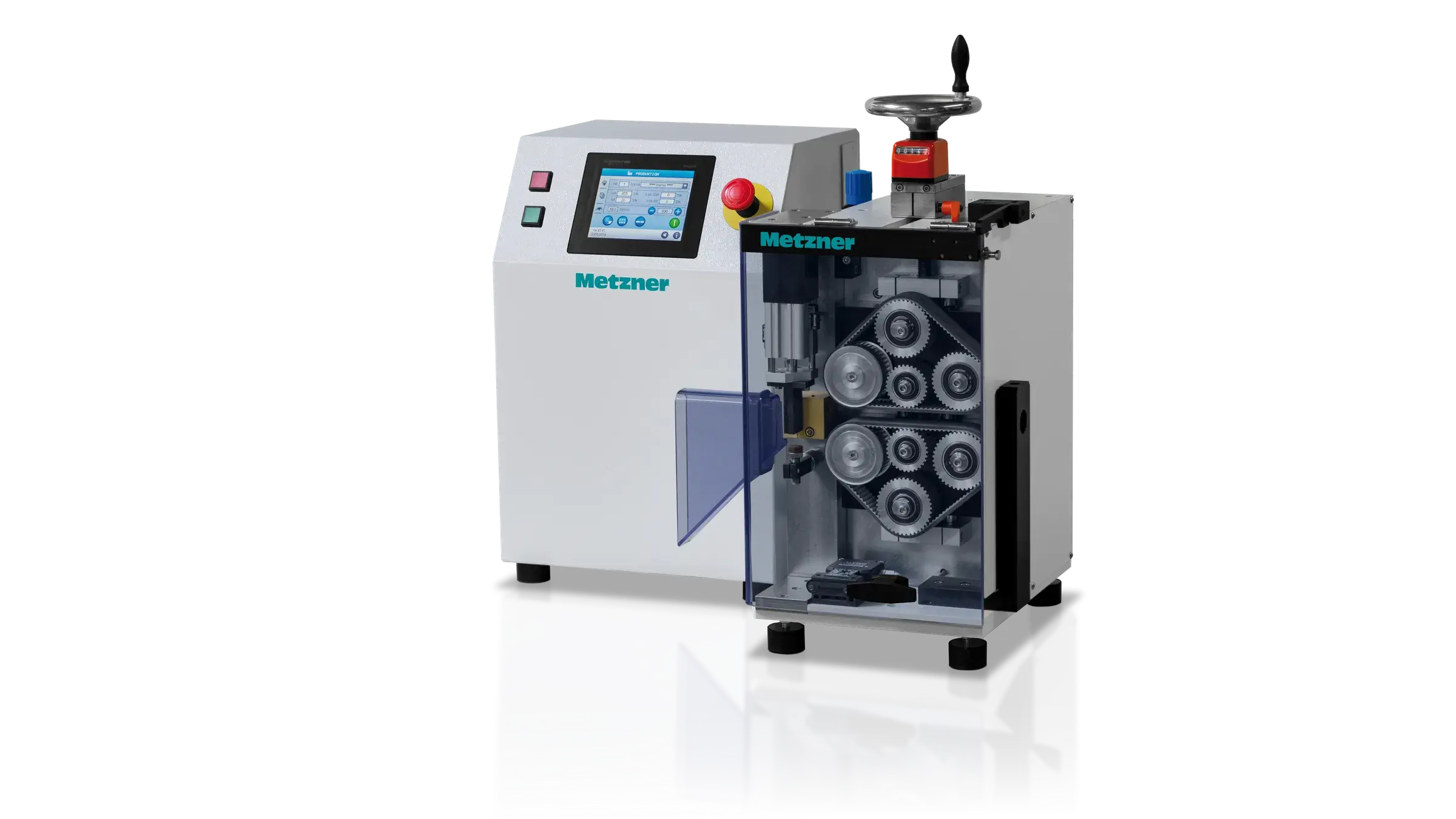

Metzner KL-BV

Designed to accurately cut silicone or elastic material.

Precision Cutting for Sensitive Materials

The Metzner KL-BV is a precision cutting machine designed for delicate, pressure-sensitive and elastic materials such as medical tubing, silicone hoses, flexible profiles and gaskets. With an ultra-thin angled blade, and adjustable feed speed and contact pressure, KL-BV offers clean and deformation-free cuts. Ideal for demanding production and cleanroom applications.

Maximise productivity
Feedrate of 60 metres per minute, with a cut rate of 330 cuts per minute
Minimise waste & rework
Repeat accuracy within ±1 mm + 0.2% of the cut length
Reduce material damage
Minimal material stress due to precise pressure control and long belt feed
Repeatable results
Ability to cut strechy or elastic material accurately with high quality results
Operator friendly
Intuitive touch screen controls and PLC integration simplify complex tasks and training even for less experienced operators
Ensured safety
Designed and built to meet applicable European and UK safety standards

The high-speed option for smaller elastic and sensitive profiles

The Metzner KL-BV is a precision belt-feed cutting machine designed for delicate, pressure-sensitive and elastic materials such as silicone tubing, medical hoses, flexible profiles and gaskets up to 18 mm diameter. Its ultra-thin angled blade, adjustable contact pressure and long belt feed deliver clean, deformation-free cuts on stretchable and soft materials where dimensional accuracy and surface quality are critical.

The machine is suited to demanding production environments, including cleanroom applications, where high throughput and repeatable results on smaller-diameter sensitive materials are the primary requirement. Compared with the KL-BV40, it offers a significantly higher cut rate of up to 330 cuts per minute, making it the preferred choice where output speed matters more than accommodating larger cross-sections.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

KL-BV datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	KL-BV
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	400 x 370 x 650mm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	0mm	Maximum width of material that can be processed
Material Height Max	330mm	Maximum height of material that can be processed
Material Diameter Max	18mm	Maximum diameter of material that can be processed
Feeding Speed Max	60m/min	Maximum feeding speed
Cutting Performance	330cuts/min	Maximum cutting performance
