Cutting machines

Metzner MBS-400

Multiple cutting processes in one machine, for materials up to 390mm diameter.

Multi-Process Line for Larger Material

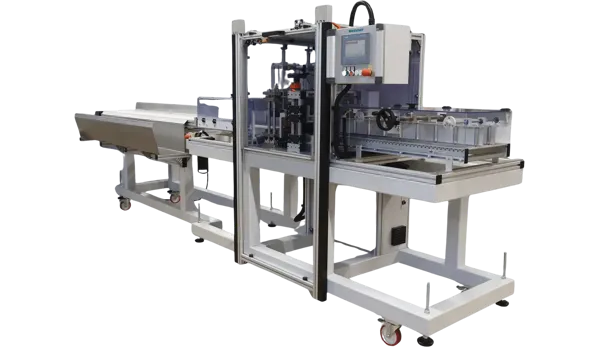

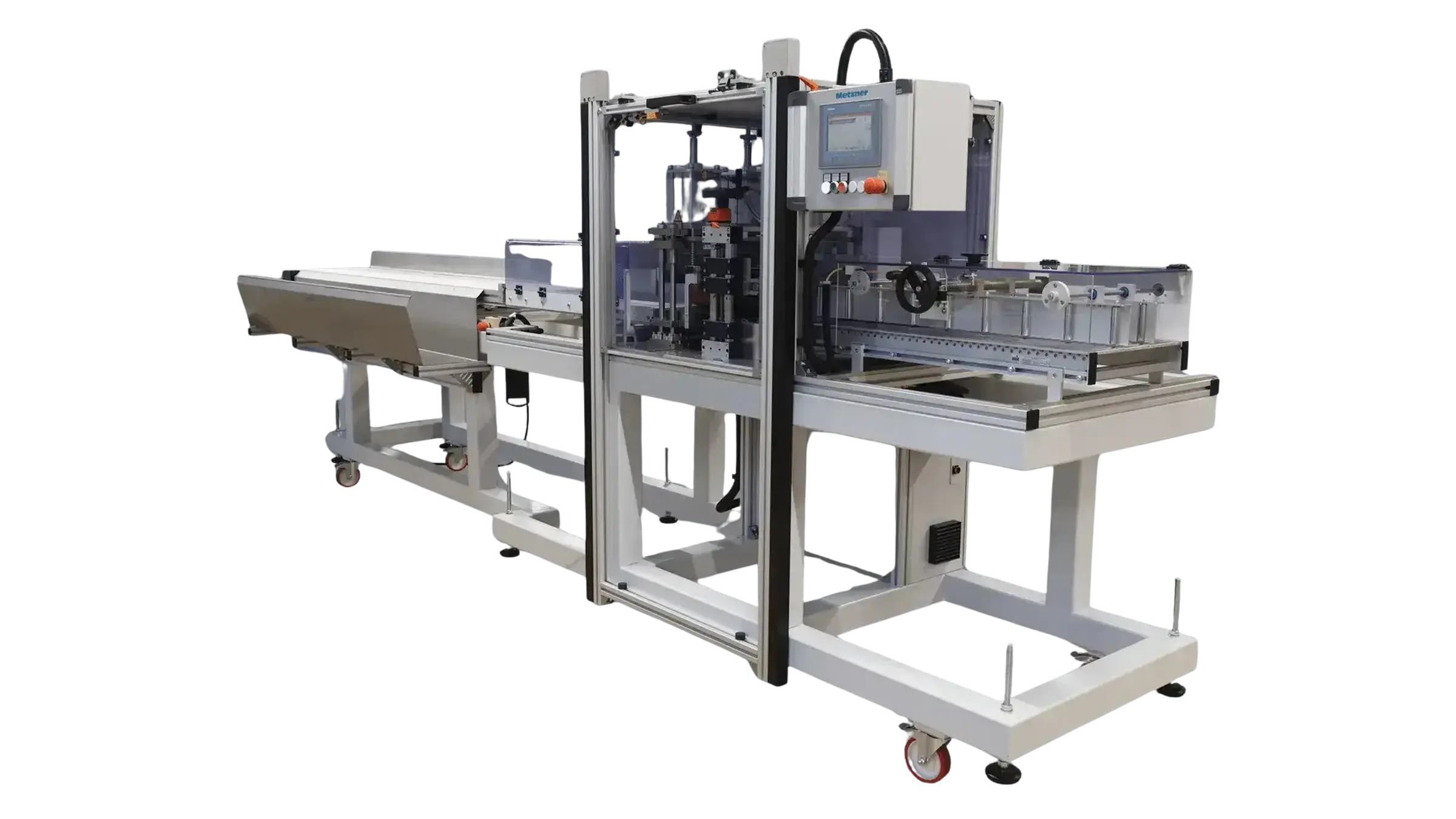

The Metzner MBS 400 is a modular material processing system designed for wide profiles up to 390 mm, adapting to complex production requirements using standardised, interchangeable modules. Its travelling cutting head ensures smooth, uninterrupted processing of rigid materials, delivering stable throughput and multi-stage capability for demanding high-volume workflows.

Your machine for your material
Customised machine using standard modules allows an economical option for complex material handling
Rigid material processing
Moving cutting head offers reliable cutting and processing performance, without stopping to cut rigid materials
Exceptional width handling
Engineered to process wider material profiles up to 390 mm with stable, consistent throughput

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

MBS-400 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	MBS-400
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	Customisedmm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	390mm	Maximum width of material that can be processed
Material Height Max	80mm	Maximum height of material that can be processed
Material Diameter Max	80mm	Maximum diameter of material that can be processed
Feeding Speed Max	120m/min	Maximum feeding speed
Cutting Performance	60cuts/min	Maximum cutting performance
