Cutting machines

Metzner ST-OB

Compact and durable design for cutting harder or thicker material.

Compact Power for Versatile Cutting

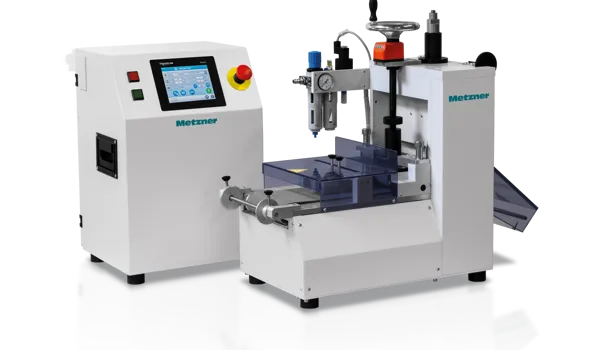

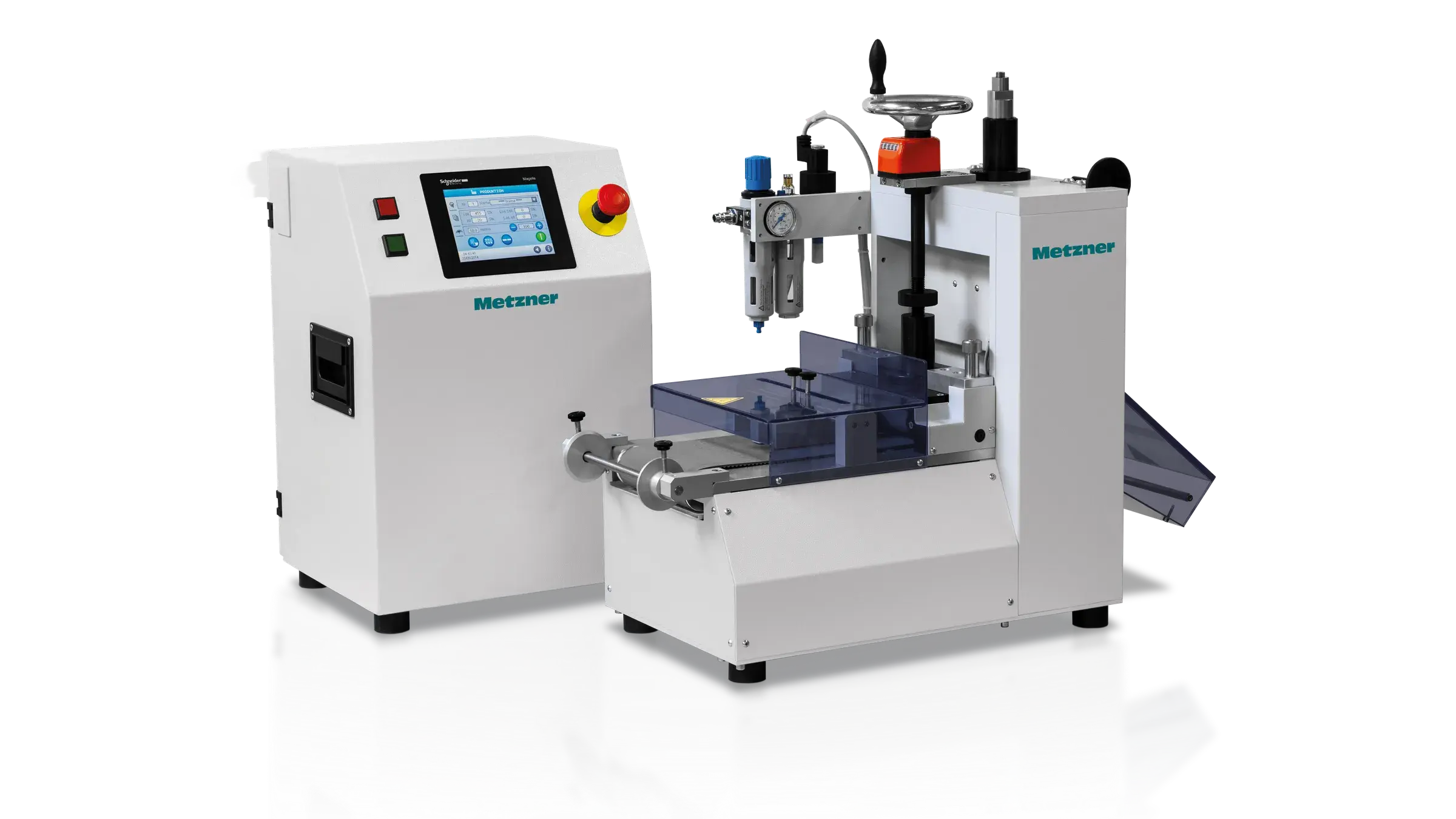

The Metzner ST-OB is a compact cutter for cables, wires, shrink tubes, labels, rubber profiles and textile-covered tubes. Supporting punch, shear, draw, blade and tube cuts at up to 205 cuts/min, it delivers precise, damage-free results.

Maximise productivity
Feed rates up to 60 m/min with high short-cycle cutting for fast throughput
Minimise waste & rework
Repeat accuracy within ±1 mm + 0.2% of cut length to reduce scrap
Versatile functionality
Quick-change heads for die, shear and drawing cuts; one machine for many tasks
Engineered for power
Exceptionally powerful cylinder of 2,200N at 6 bar for demanding cutting tasks
Operator friendly
Intuitive colour touch screen and PLC control for fast setup and simple training
Safety ensured design
Built to meet applicable European and UK safety standards for industrial use

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

ST-OB datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	ST-OB
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	700 x 400 x 650mm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	150mm	Maximum width of material that can be processed
Material Height Max	30mm	Maximum height of material that can be processed
Material Diameter Max	30mm	Maximum diameter of material that can be processed
Feeding Speed Max	60m/min	Maximum feeding speed
Cutting Performance	150cuts/min	Maximum cutting performance
