Metzner KL-BV40
High repeatability of cut lengths with high tollerance
Precision Cutting for Larger Sensitive Materials

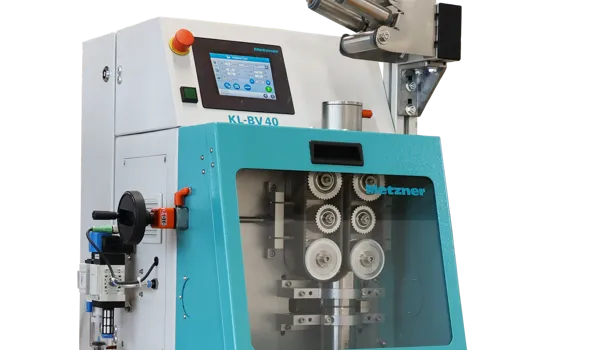

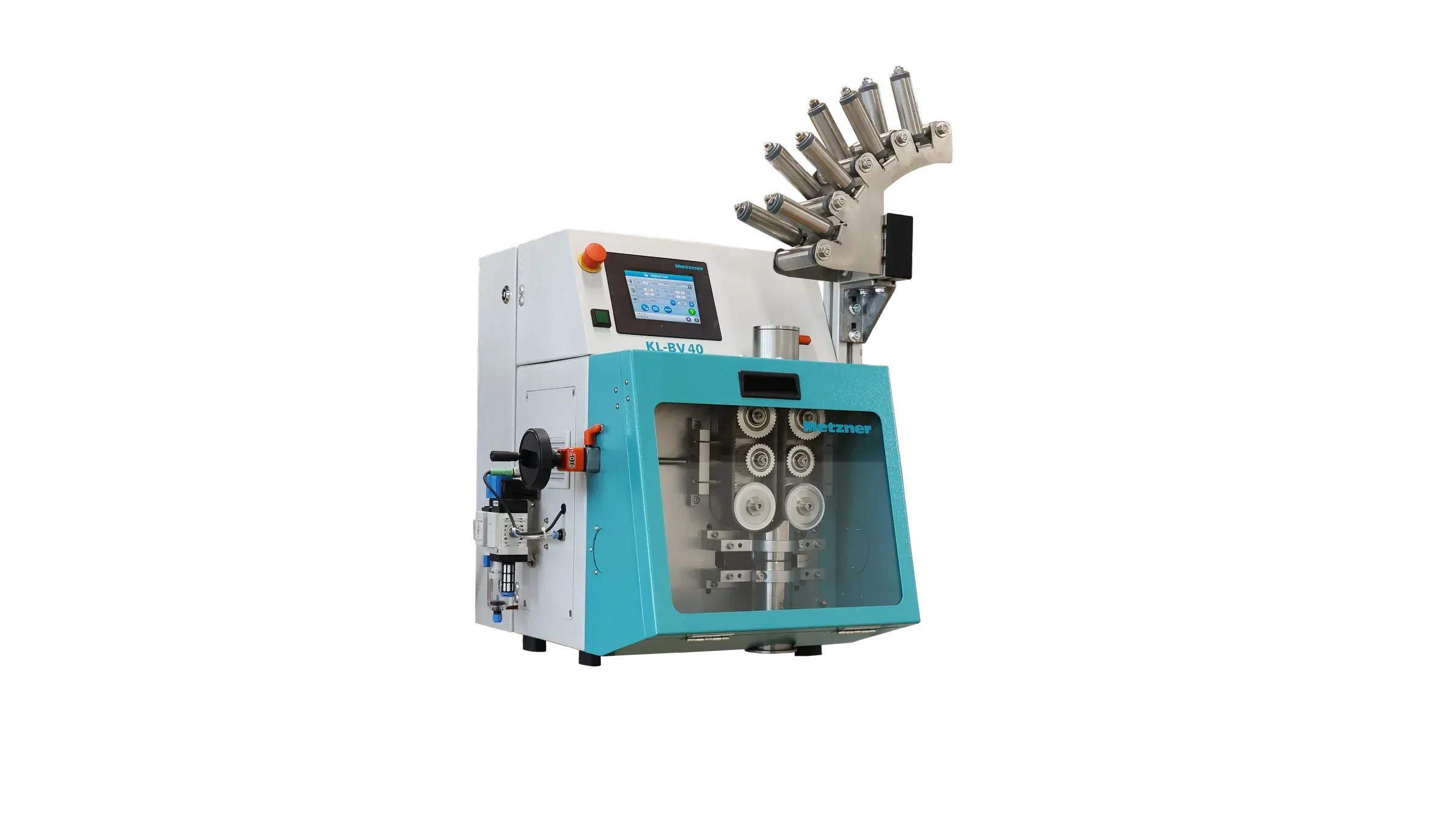

The Metzner KL‑BV40 is a high‑precision cutting machine engineered for larger elastic, pressure‑sensitive and soft materials up to 40 mm diameter, including thick tubing, profiles and flexible extrusions. Its finely controlled belt feed, ultra‑thin blade technology and low‑pressure handling deliver clean, deformation‑free cuts even on bulky or highly elastic products.
- Maximise productivityFeedrate of 60 metres per minute, with a cut rate of 100 cuts per minute
- Minimise waste & reworkRepeat accuracy within 0.2% of the cut length
- Reduce material damageMinimal material stress due to precise pressure control and long belt feed
- Repeatable resultsDesigned specifically for elastic and sensitive materials up to 40 mm, maintaining accuracy without deformation or squeezing
- Operator friendlyIntuitive touch screen controls and PLC integration simplify complex tasks and training even for less experienced operators
- Adapts to your production lineAvailable in a vertically working version for all static materials since product leaves the machine with the force of gravity
Machine choosing guide
Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.
KL-BV40 datasheet
(pdf will download or open in a new tab)
(pdf will download or open in a new tab)
| Name | Value | Description |
|---|---|---|
| Machine Name | KL-BV40 | |
| Cutting Accuracy | ±1 mm + 0.2% of the cut length | Positional and repeatable cutting accuracy |
| Dimensions (LxWxH) | 400 x 582 x 605mm | Length x Width x Height |
| Electrical Input | 230 Vac; 50/60 Hz; 10 A | Power supply requirements |
| Compressed Air Input | 6 Bar, 87 PSI | Required compressed air connection |
| Noise (idle) | 75dB | Noise level during idle operation |
| Material Width Max | 0mm | Maximum width of material that can be processed |
| Material Height Max | 100mm | Maximum height of material that can be processed |
| Material Diameter Max | 40mm | Maximum diameter of material that can be processed |
| Feeding Speed Max | 60m/min | Maximum feeding speed |
| Cutting Performance | 40cuts/min | Maximum cutting performance |
KL-BV40 supports the following material families and profile configurations.
EpdmPlasticPvcRubberSiliconeSponge
Complex Profile
Flexible · Mixed · None
RubberPlasticEpdmPvcSiliconeSponge
Round Cord
Flexible · Solid · None
RubberPlasticEpdmPvcSilicone
Round Hose
Flexible · Hollow · None
RubberPlasticEpdmPvcSilicone
Square Profile
Flexible · Mixed · None
RubberPlasticEpdmPvcSiliconeSponge
Round Hose
Rigid · Hollow · None
RubberPlasticEpdmPvc
Round Gasket
Flexible · Solid · None
RubberPlasticEpdm
KL-BV40 can be expanded with peripherals to improve automation, throughput and output consistency.
Dereelers
Passive and active dereelers feed materials smoothly for consistent, precise cutting performance.
Flexible
Prefeeders
Work with dereelers to maintain a tension-free loop for precise, repeatable cutting.
Flexible
Loop Control
Control your feed rate digitally, to supply a tension-free product flow into the cutting machine.
Flexible
